• CFM delivered on any single duct unit assumes an external static pressure of .05".

• CFM delivered on any double duct unit assumes an external static pressure of .10".

• Performance based on the following: 80°F DB/67°F WB entering air. 95°F ambient entering condenser air.

• FLA = Full load amps
MCA = Minimum circuit amps -(2) Separate power supplies required for heating and cooling in same unit.
MFS = Maximum fuse size

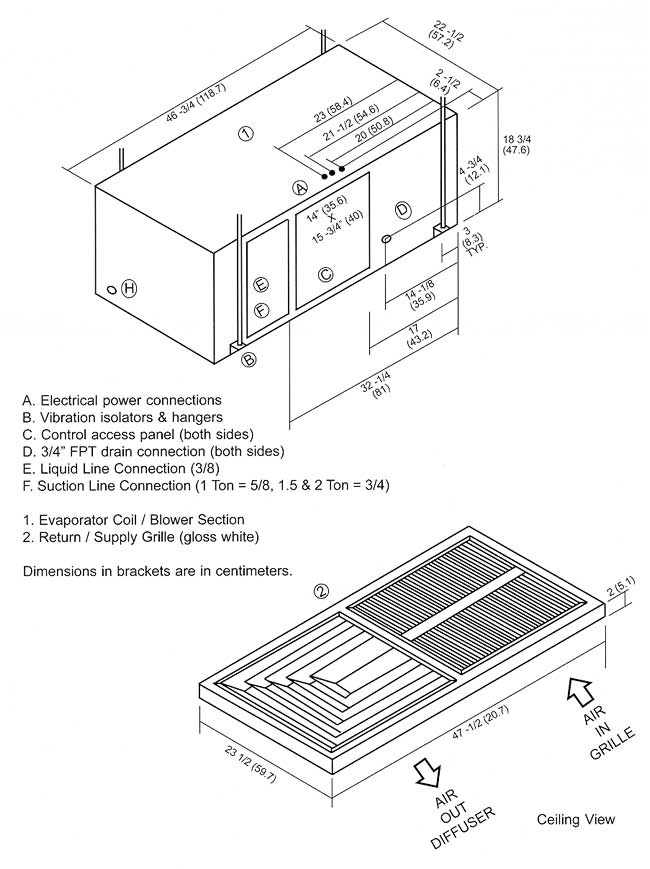

DX Grille Diffuser 2 AC Unit Specifications






DX Evaporator

Series

DXGD
Grille Diffuser

Nominal Tons

2.0

Model Number

DXGD-2

Total Cooling MBH (3)

24.2

Sensible Cooling MBH

17.0

Air Flow CFM

800

Fan Motor HP

1/4

Fan Speeds

3 SPD

Fan Motor Amps

2.0

Heating Circuit FLA

20

Heating Circuit MCA

25

Heating Circuit MFS

25

Weight (Approx. LBS.)

167




DXGD Models

DXGD-1

Nominal CFM

400

Nominal Tons

1.0

Standard Horsepower

1/4



DXGD-1.5

Nominal CFM

600

Nominal Tons

1.5

Standard Horsepower

1/4



DXGD-2

Nominal CFM

800

Nominal Tons

2.0

Standard Horsepower

1/4
