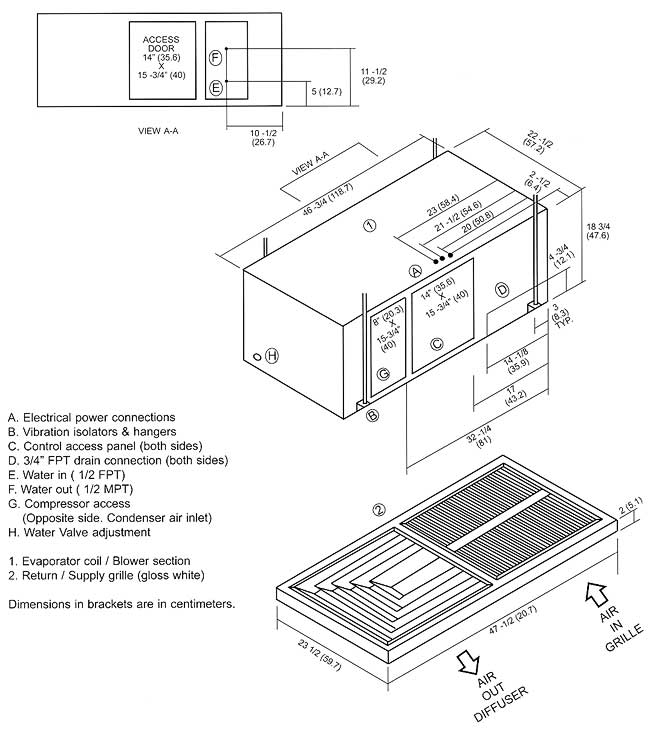

Chilled Water Grille Diffuser 2 AC Unit Specifications






CW Series (Chilled Water)

Series

CWGD
Grille Diffuser

Nominal Tons

2.0

Model Number

CWGD-2.0

Total Cooling MBH (3)

26.4

Sensible Cooling MBH

18.95

Air Flow CFM

800

Fan Motor HP

1/4

Fan Speeds

3 SPD

Fan Motor Amps

2.0

Heating Circuit FLA

20

Heating Circuit MCA

25

Heating Circuit MFS

25

Weight (Approx. LBS.)

177




CWGD Models

CWGD-1

Nominal CFM

400

Nominal Tons

1.0

Standard Horsepower

1/4



CWGD-1.5

Nominal CFM

600

Nominal Tons

1.5

Standard Horsepower

1/4



CWGD-2

Nominal CFM

800

Nominal Tons

2.0

Standard Horsepower

1/4
