Notes

• CFM delivered on any single duct unit assumes an external static pressure of .05".

• CFM delivered on any double duct unit assumes an external static pressure of .10".

• Performance based on the following: 80°F DB/67°F WB entering air. 95°F ambient entering condenser air.

• FLA = Full load amps
MCA = Minimum circuit amps -(2) Separate power supplies required for heating and cooling in same unit.
MFS = Maximum fuse size

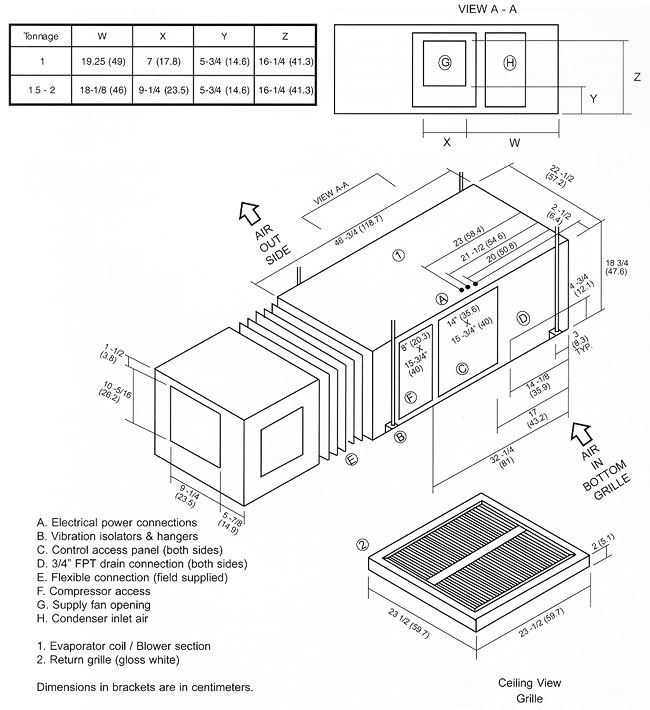

Air Cooled Grille Diffuser 1.5 AC Unit Specifications






AC Series (Air Cooled)

Series

ACGD
Grille Diffuser

Nominal Tons

1.5

Model Number

ACGD-1.5

Total Cooling MBH (3)

18.9

Sensible Cooling MBH

13.1

Air Flow CFM

600

Fan Motor HP

1/4

Fan Speeds

3 SPD

Fan Motor Amps

2.0

Compressor Amps

7.2

Fan Motor HP

1/3

Fan Motor Amps

2.3

Air Flow CFM (Actual)

611(H)

Cooling Circuit FLA

11.5

Cooling Circuit MCA

13.3

Cooling Circuit MFS

20

Heating Circuit FLA

20

Heating Circuit MCA

25

Heating Circuit MFS

25

Weight (Approx. LBS.)

302




Menu

ACGD-1

Nominal CFM

400

Nominal Tons

1.0

Standard Horsepower

1/4



ACGD-1.5

Nominal CFM

600

Nominal Tons

1.5

Standard Horsepower

1/4



ACGD-2

Nominal CFM

800

Nominal Tons

2.0

Standard Horsepower

1/4
